SF60 & SF80 sliding doors

The giants of aluminium sliding door technology

The most advanced sliding door systems on the market

Passivhaus standard thermal efficiency achievable

Extreme panel sizes up to 6m wide combined with minimal 30mm frames

Premium German designed aluminium sliding doors

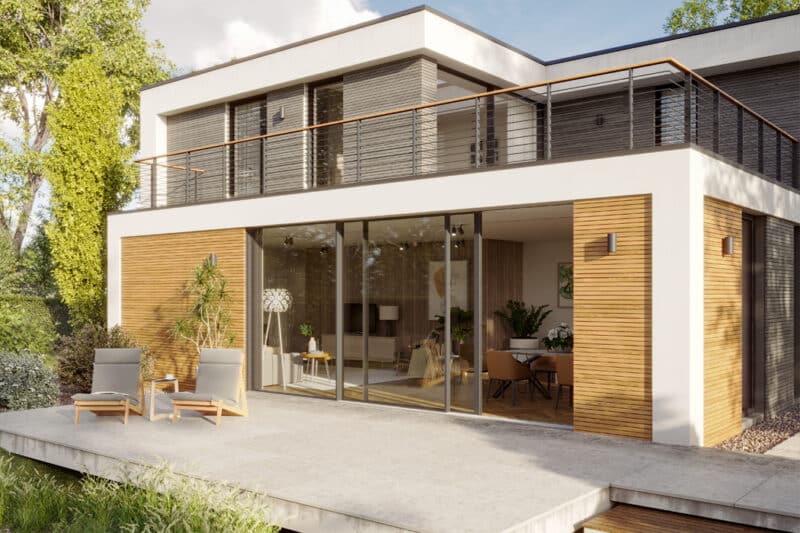

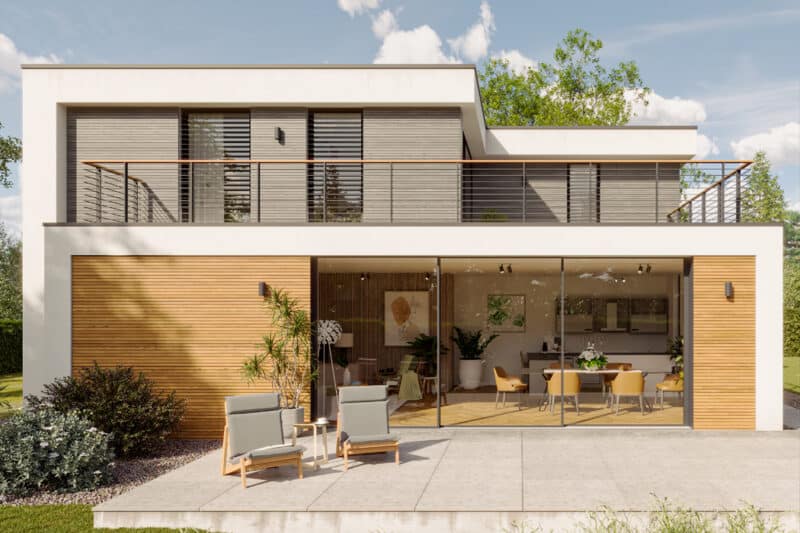

The new SF60 & SF80 from SUNFLEX in Germany reset the standard for high-performance aluminium sliding doors, capable of achieving an unrivalled combination of panel size, thermal performance and advanced design.

Sitting alongside our ultra-slim SVG20 and SVG30 systems, the SF60 and SF80 enable SUNFLEX UK to offer a sliding door solution for any size of opening with even the most complex specification requirements.

With panel sizes up to a massive 6m wide and up to 4m tall, narrow 30mm sightlines and Passivhaus standards of thermal efficiency the SF60 & SF80 redefine the boundaries of what is achievable with a sliding door.

As you would expect of a SUNFLEX door system, the SF60 & SF80 sliding doors are engineered to the highest standards of quality, with every door set exclusively manufactured in a SUNFLEX factory buy our own fabricators.

SUNFLEX SF60 & SF80 Brochure
Premium German designed aluminium sliding doors
Key design features

KEY FEATURE 1
Slim from any angle

The SF60 & SF80 are both designed with slender frames with just 30mm visible sightlines that finish flush with the glass – so no need for the ugly reinforcing profile that you see on many aluminium sliding door systems on the market.

Whilst other door systems may appear to offer slim sightlines, the chunky reinforcing profile means that the frames can significantly impact on the view out when looked at from any angle that isn’t straight-on – not something you need to worry about with sliding doors from SUNFLEX UK.

KEY FEATURE 2
Advanced thermal performance

As Building Regulations tighten the requirements for thermal efficiency the SF60 & SF80 provide sliding door solutions for even new-build Passivhaus standard eco-homes.

The double glazed SF60 is capable of achieving U-value figures from just 1.1W/m²K whilst the triple glazed, ultra-thermally efficient SF80 can achieve U-values as low as just 0.8W/m²K. Unlike other manufacturers, these figures are achieved for the whole system and not by just including only the visible frame elements.

Just as with the award-winning SF75eco bifold door this performance is possible because of the advanced thermal break technology and engineering of the doors.

KEY FEATURE 3
Extreme panel sizes

Both door systems are the giants of sliding door technology, with individual panels up to 6m wide, up to 4m tall and up to a massive 800kg in weight, whilst overall door systems can measure and incredible 32m across.

These huge panel sizes, combined with narrow 30mm sightlines make the SF60 & SF80 perfect for creating almost uninterrupted views out into the garden and for maximising the amount of light you let into your home.

KEY FEATURE 4
Dry-glazed, not bonded

One of the trends in the development of sliding door technology has been the tendency for manufacturers to need to bond the glass to the frame to provide rigidity for the system. The challenge is that should a sealed unit ever break you would need to replace the whole panel (and not just the glass), not only significantly more expensive but also problemmatic if the door system goes out of production over the years.

For this reason the SF60 & SF80 are dry glazed (held in place by internal glazing beads) rather than being fully bonded, so should you ever need to change the glass you can simply remove the beads and swap out the sealed unit – giving you complete peace of mind now and for decades to come.

KEY FEATURE 5

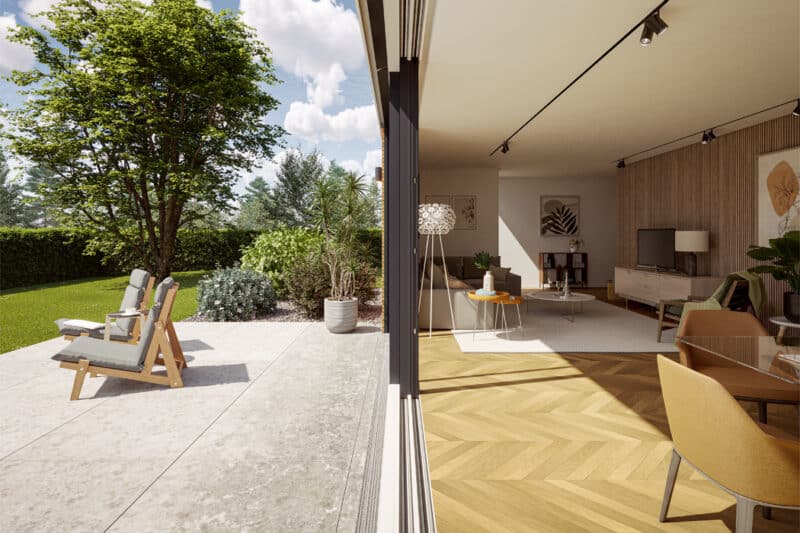

Flush stacking panels

As with the award-winning SVG20 and SVG30 doors, the SF60 & SF80 can be designed with an innovative flush stacking detail, where all the panels slide neatly behind the next to create a contemporary appearance when the doors are opened.

Not only does this create aesthetic appeal, it also maximises the space that is provided when the doors are slid back – perfect for breaking down the boundaries between your home and garden.

KEY FEATURE 6
Advanced security

Tested to the advanced RC2 security test, the European equivalent to British PAS 24 testing, and featuring multi-point mushroom lead locks, the SF60 & SF80 offer complete peace of mind when it comes to security. As with every SUNFLEX door, our sliding doors are fitted with 6-Pin anti-bump, anti-snap, anti-drill key cylinders.



KEY FEATURE 7
Exclusive CUBIC handle design

The new CUBIC handle has been custom designed exclusively for the SF60 & SF80 sliding doors. CUBIC features a contemporary appearance with square sections, the rotating top section ensures the door always has the same neat look whether open or closed.

The minimalist design ensures the handle sits neatly within the width of the frame, ensuring your attention is drawn to the view beyond the doors rather than the hardware!

RC2 Security Accrediation Made in Germany
Specifications
SF60 SF80
Sightlines 30mm 30mm
Glazing Double glazed Triple glazed
U-Value From 1.1 W/m²k† From 0.8 W/m²k†
Maximum panel width Up to 6m Up to 6m
Maximum panel height Up to 4m Up to 4m
Maximum panel weight 800kg 800kg
Maximum overall system width 36m 36m
Glass options 32mm, 33mm or 34mm sealed units 52mm, 53mm or 54mm sealed units
Water tightness To 900Pa (Class 9a)* To 900Pa (Class 9a)*
Air permeability To 600Pa (Class 4)* To 600Pa (Class 4)*
Wind load To 2000Pa (Class C3/B5)* To 2000Pa (Class C3/B5)*
Flush stacking Standard Standard
Track options 2 – High or low tracks in twin or triple configurations 2 – High or low tracks in twin or triple configurations
Cover plates Standard Standard
Handle design Exclusive CUBIC handle Exclusive CUBIC handle
Running gear Dual stainless steel Dual stainless steel
Security Holds prestigious European RC2 security testing, equivalent to PAS 24 standard. Holds prestigious European RC2 security testing, equivalent to PAS 24 standard.
Expand

* Water tightness and air permeability test performance is dependent upon a number of factors including system configuration and panel sizes.

† Thermal performance is dependent on glass specification.

Why choose a SUNFLEX UK sliding door?

With more than 20 years’ experience of manufacturing some of the most advanced aluminium glazing systems on the market, the SUNFLEX UK sliding door range combines innovative design with tried and tested quality and superior weather performance, providing complete peace of mind whatever the size and scale of your project.

SUNFLEX SF60 & SF80 Brochure
Colours

Colour options

As standard, the SF60 & SF80 are available in our three most popular colours. Alternatively, you can select from more than 200 RAL colours and finishes to completely personalise the doors to your home, including the option to dual colour the doors with different finishes on the internal and external faces of the frame.

SVG83 - Standard colours

  • Anthracite Grey (RAL 7016) matt finish Anthracite Grey (RAL 7016) matt finish
  • Charcoal Grey Metallic (DB703) textured finish Charcoal Grey Metallic (DB703) textured finish
  • Jet Black (RAL 9005) matt finish Jet Black (RAL 9005) matt finish

SVG83 - Popular bespoke colours

  • Slate Grey (RAL 7015) matt finish Slate Grey (RAL 7015) matt finish
  • Grey Aluminium (RAL 9007) semi-gloss finish Grey Aluminium (RAL 9007) semi-gloss finish
  • Traffic White (RAL 9016) matt finish Traffic White (RAL 9016) matt finish
  • Graphite Black (RAL 9011) matt finish Graphite Black (RAL 9011) matt finish
  • Sage Green (RAL 6021) matt finish Sage Green (RAL 6021) matt finish
  • Pearl Mouse Grey (RAL 7048) matt finish Pearl Mouse Grey (RAL 7048) matt finish
